SANY Mini Excavators

Built to Perform. Engineered to Last.

COMPACT MINI EXCAVATOR RANGE

SANY

Build & Price Download Range Brochure
Product imagery shown may vary by model variant and regional specification.

14.6 kW

Engine Power (Yanmar 3TNV80F)

2,385 mm

Max Digging Depth

1,925 kg

Operating Weight

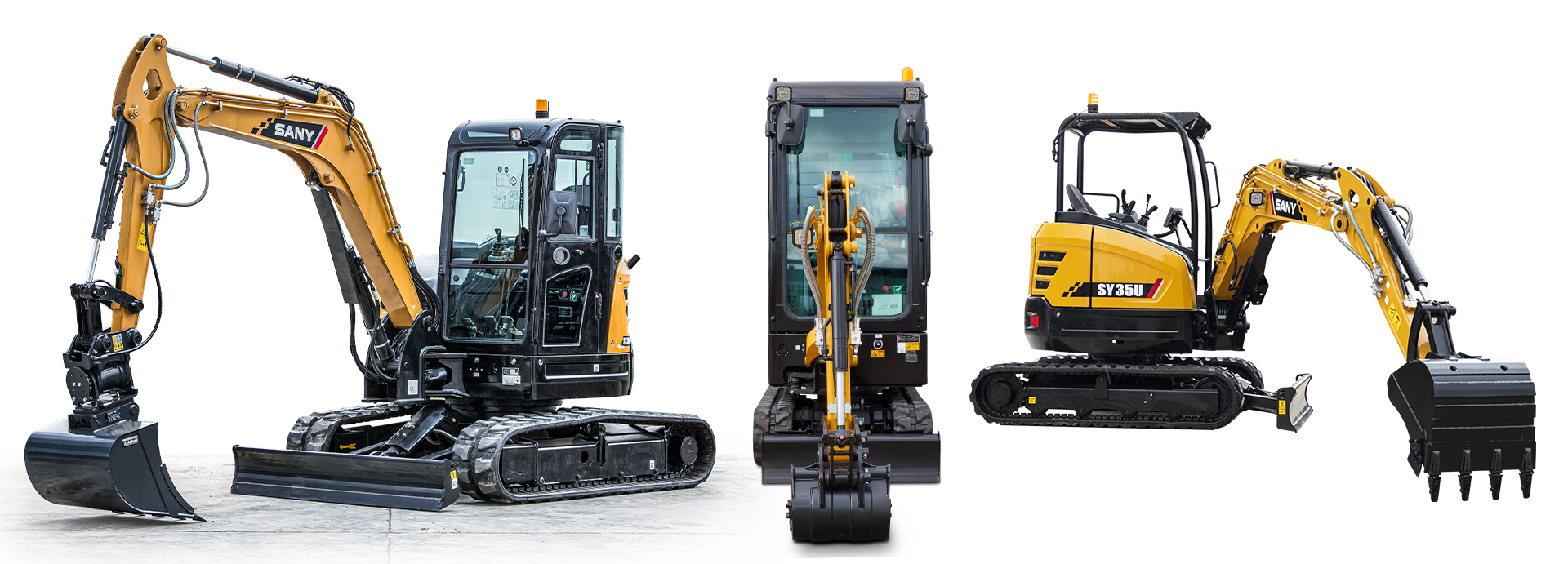

Meet the SANY excavator range

From the compact 1.7-tonne SY16C to the 5.3-tonne SY50U CAB, the SANY range covers seven models built for every job site and access requirement. Choose from canopy or fully enclosed cab configurations, with Yanmar diesel power and digging depths from 2,360mm to 3,460mm — so whether you're working tight residential sites or larger civil and earthmoving projects, there's a SANY excavator sized to match the job.

Built to perform

Powerful, efficient and comfortable.

Powerful Digging Performance

High-power Yanmar engines paired with high-torque main pumps deliver reliable breakout force and rapid cycle times across tough excavation tasks.

Precision Hydraulic Control

Refined, power-matched hydraulic systems ensure smooth and coordinated multi-function operation, giving operators maximum precision around underground services.

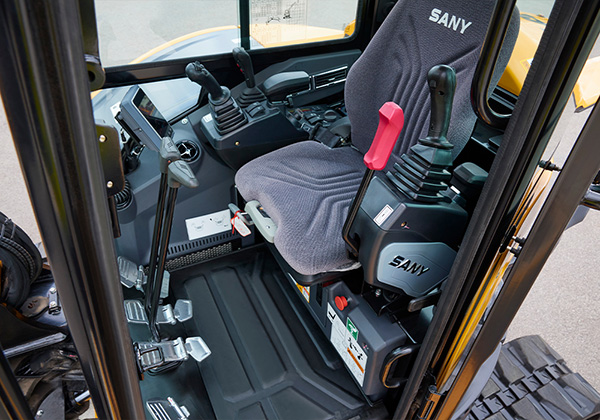

Operator Comfort & Visibility

Designed for long shifts on site, SANY cabs and canopies feature ergonomic controls, reduced vibration levels, and clear line-of-sight perimeter visibility.

Engineering & Durability Features

Heavy-Duty Construction

Reinforced boom and arm structures with thick steel side plates withstand severe torsional stress and continuous heavy digging.

Yanmar Diesel Reliability

Industry-proven Yanmar powertrains offer high fuel efficiency, low sound emissions, and long service intervals to reduce total operational cost.

Auxiliary Hydraulic Integration

Standard factory auxiliary lines support quick connection and smooth proportional control of hitches, breakers, augers, and tilt buckets.

Daily Serviceability

Ground-level service access through wide-opening engine hoods allows rapid inspection of filters, fluid levels, and hydraulic components.

Why Choose SANY

Global engineering excellence backed by local support, built to protect your investment.

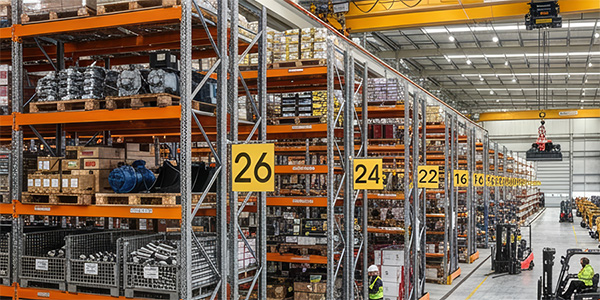

Genuine Parts & Local Support

SANY genuine parts carry a 12-month warranty and are backed by an extensive Australian dealer and service network for fast turnaround.

5-Year Warranty

Backed by SANY’s 5 Year 4,000 Hour Premium Command Care warranty we are committed to keeping your equipment in optimum operating condition and protecting your investment from day one.

Safety & Anti-Theft as Standard

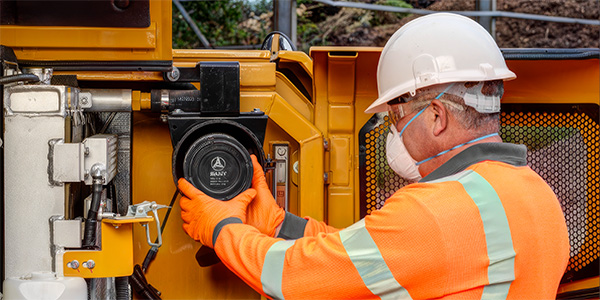

ROPS, TOPS and FOPS certified for operator protection, plus EVI GPS telematics with geofencing so you can track and safeguard every machine on site.

Low Operating Costs

Power-matched Yanmar engines and load-sensing hydraulics cut fuel burn and reduce downtime, keeping running costs down over the life of the machine.

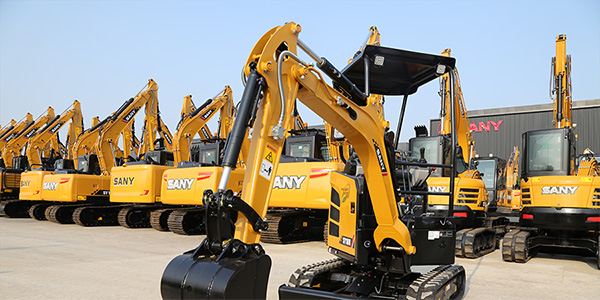

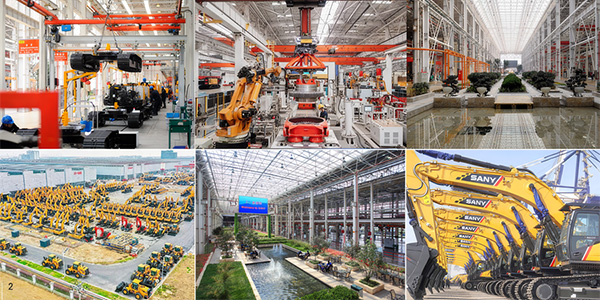

Global Manufacturing Scale

Founded in 1989, SANY is one of the world's largest construction equipment manufacturers, with machines working in 150+ countries and 5–7% of annual revenue reinvested into R&D.

Versatile by design

Configure the SANY for your application.

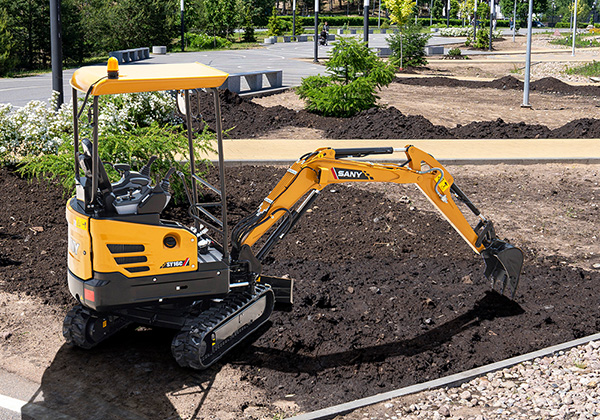

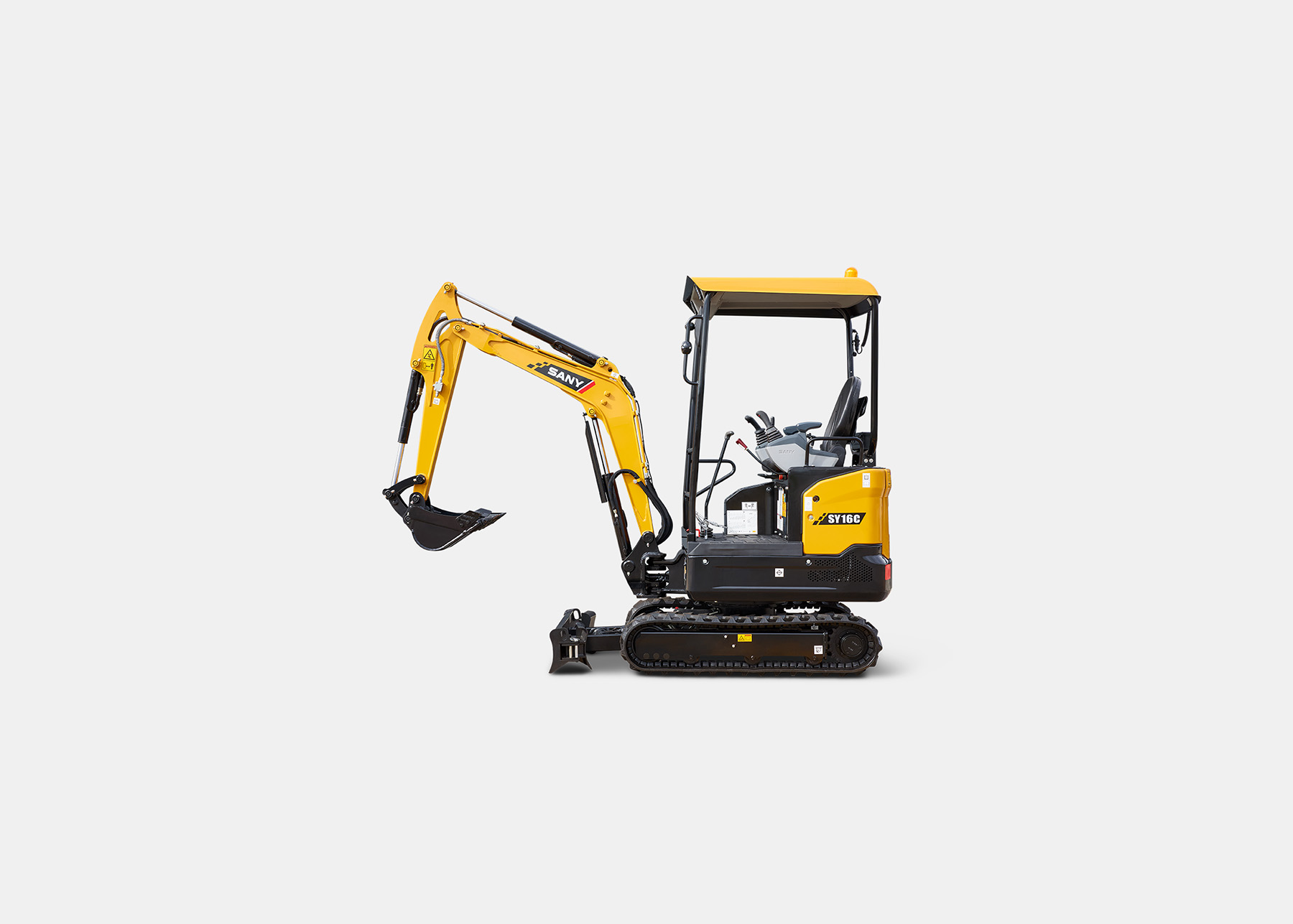

SY16C

Compact 1.7 Tonne configuration

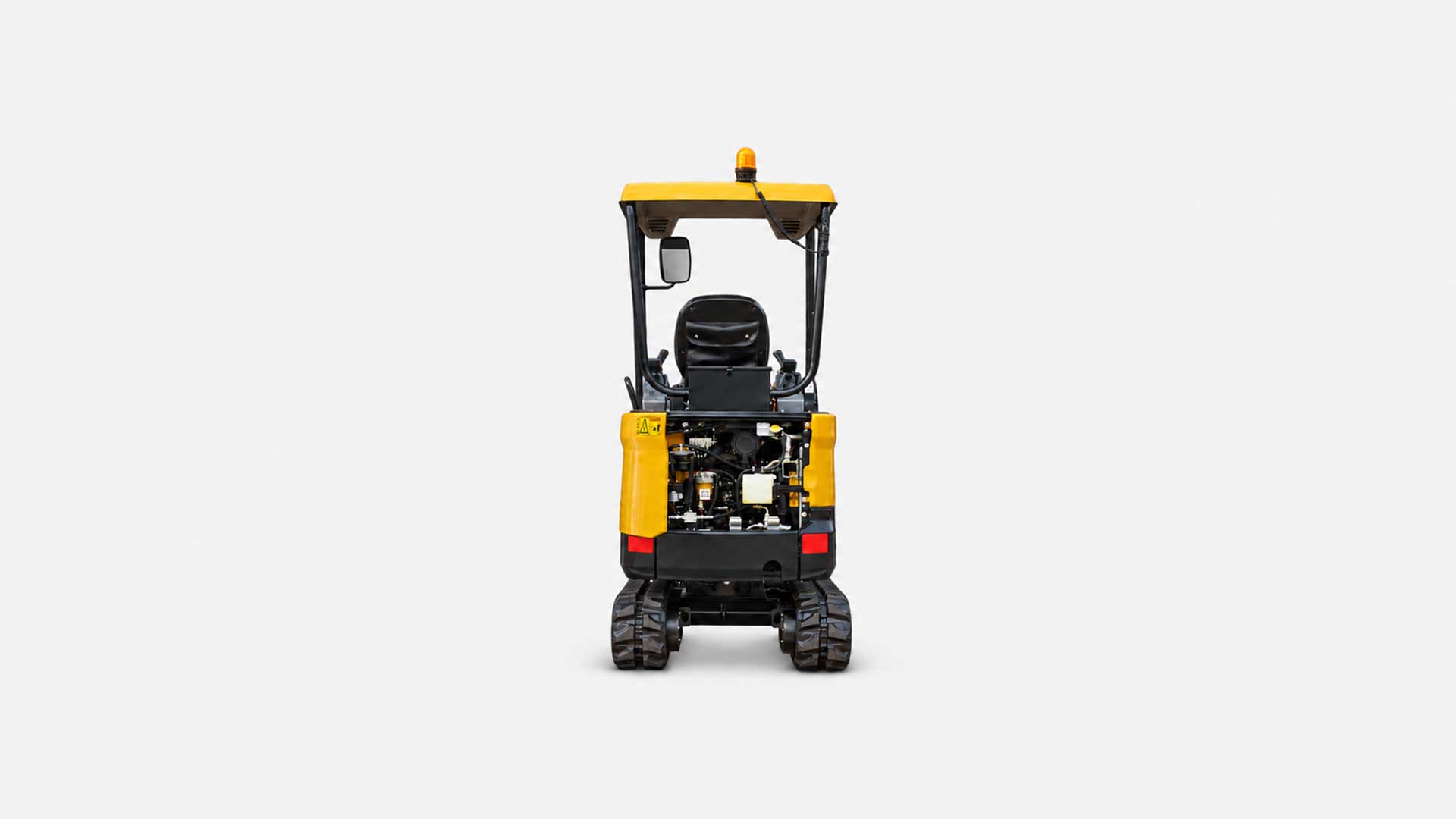

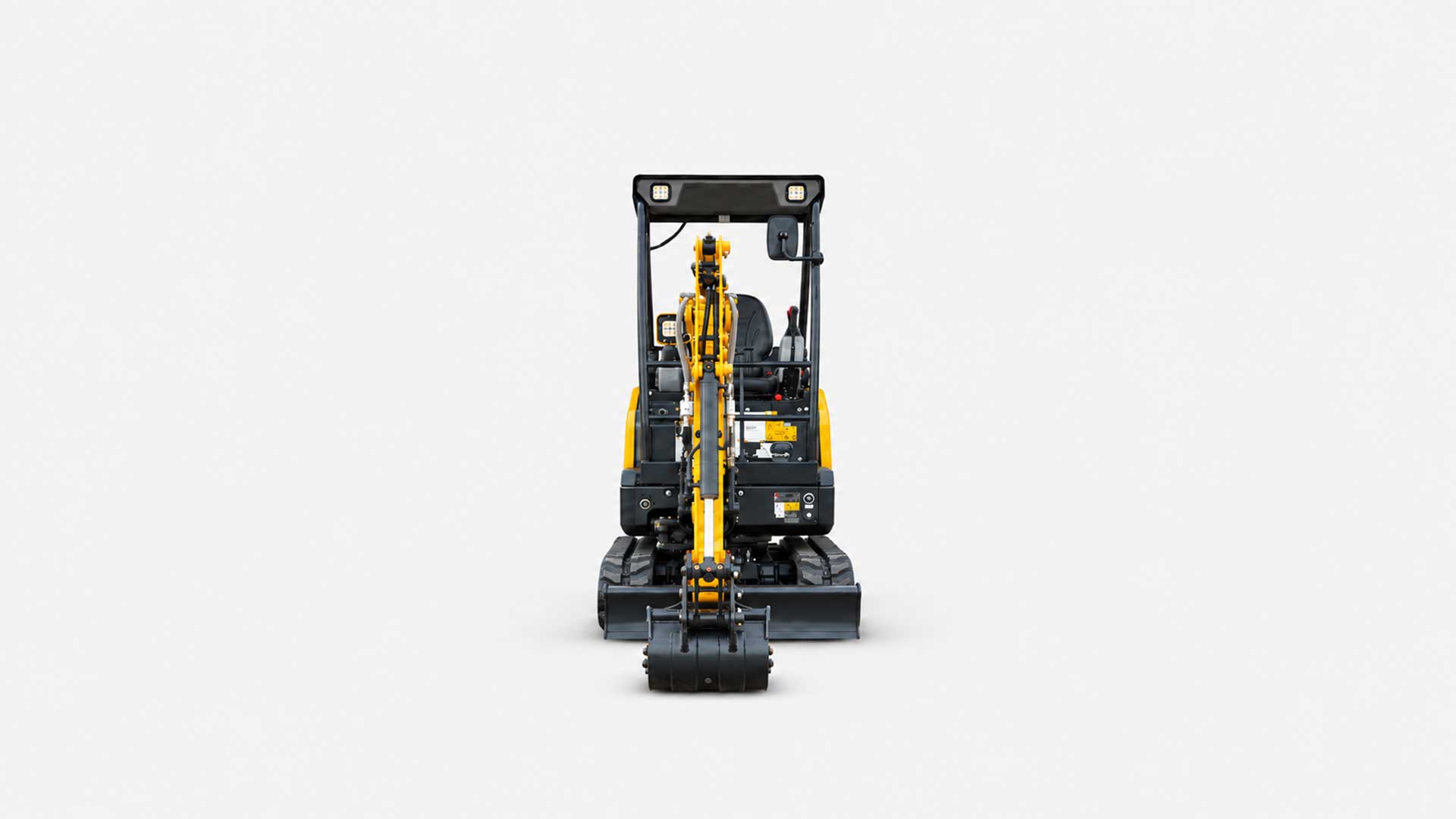

Front Side Back

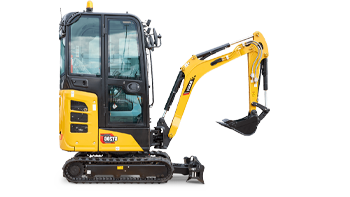

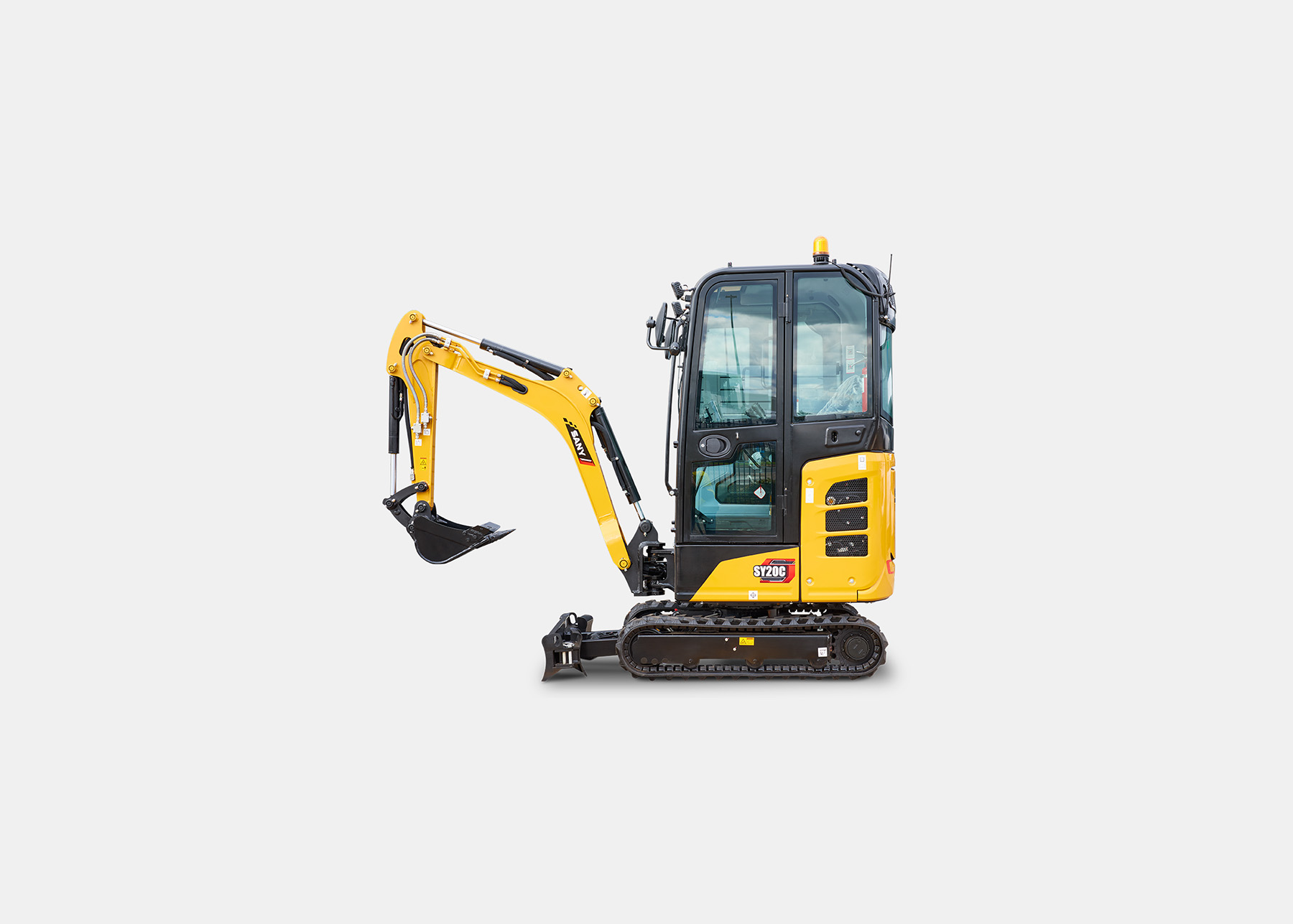

SY20C CAB

2.0 Tonne cab configuration

Front Side Back

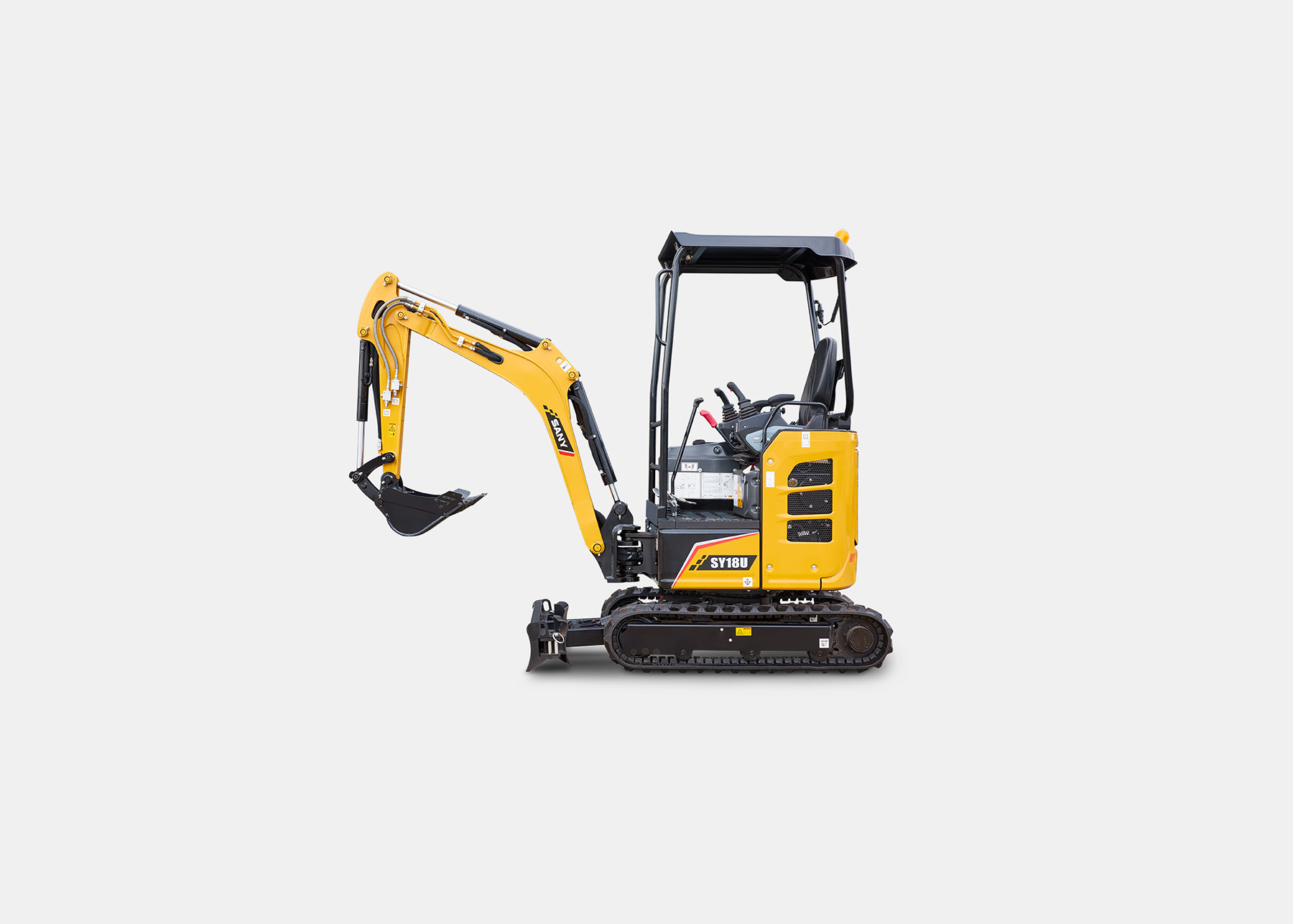

SY18U

1.9 Tonne zero-tail-swing configuration

Front Side Back

SY26U CANOPY

2.6 Tonne canopy configuration

Front Side Back

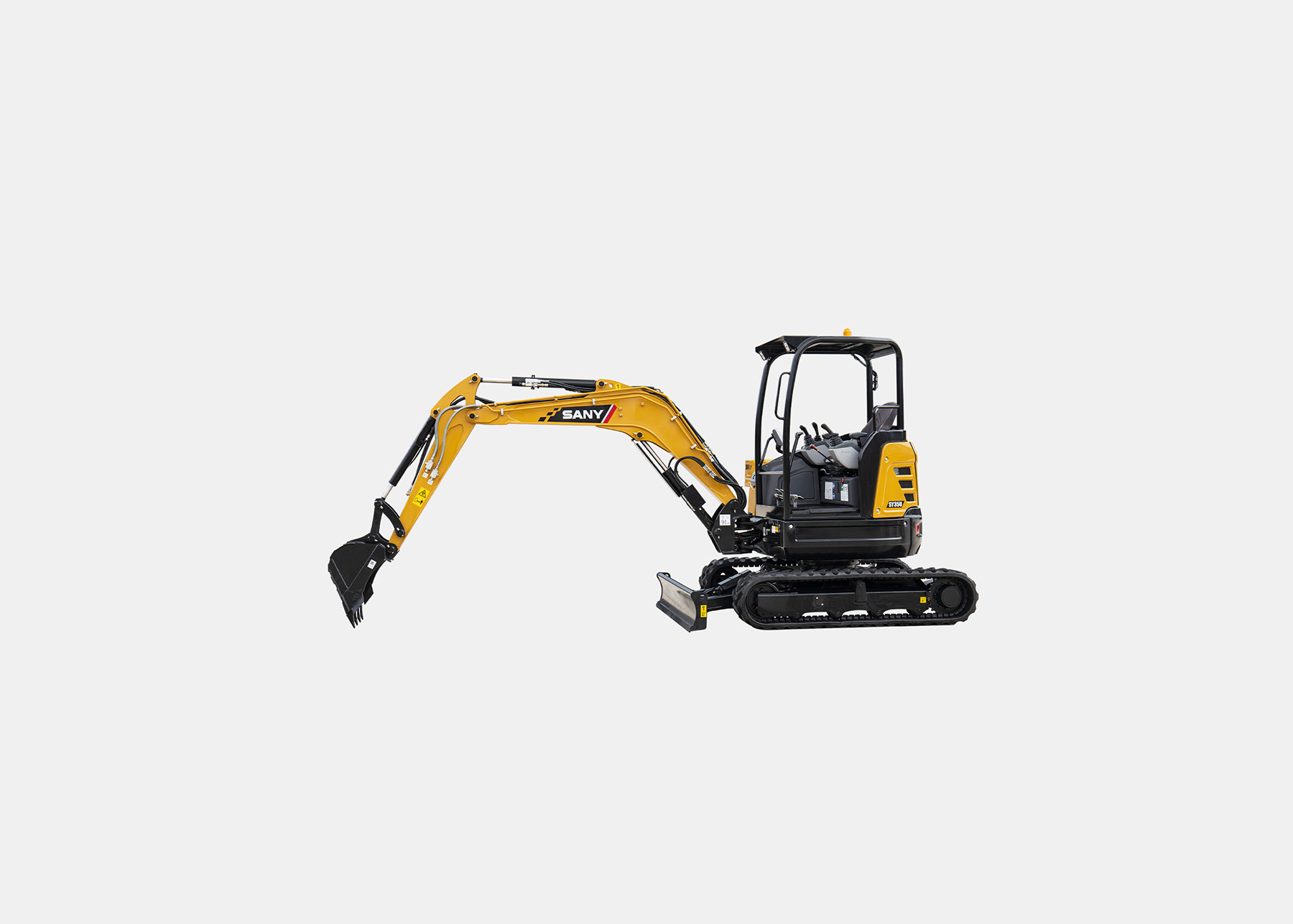

SY35U CANOPY

3.8 Tonne canopy configuration

Front Side Back

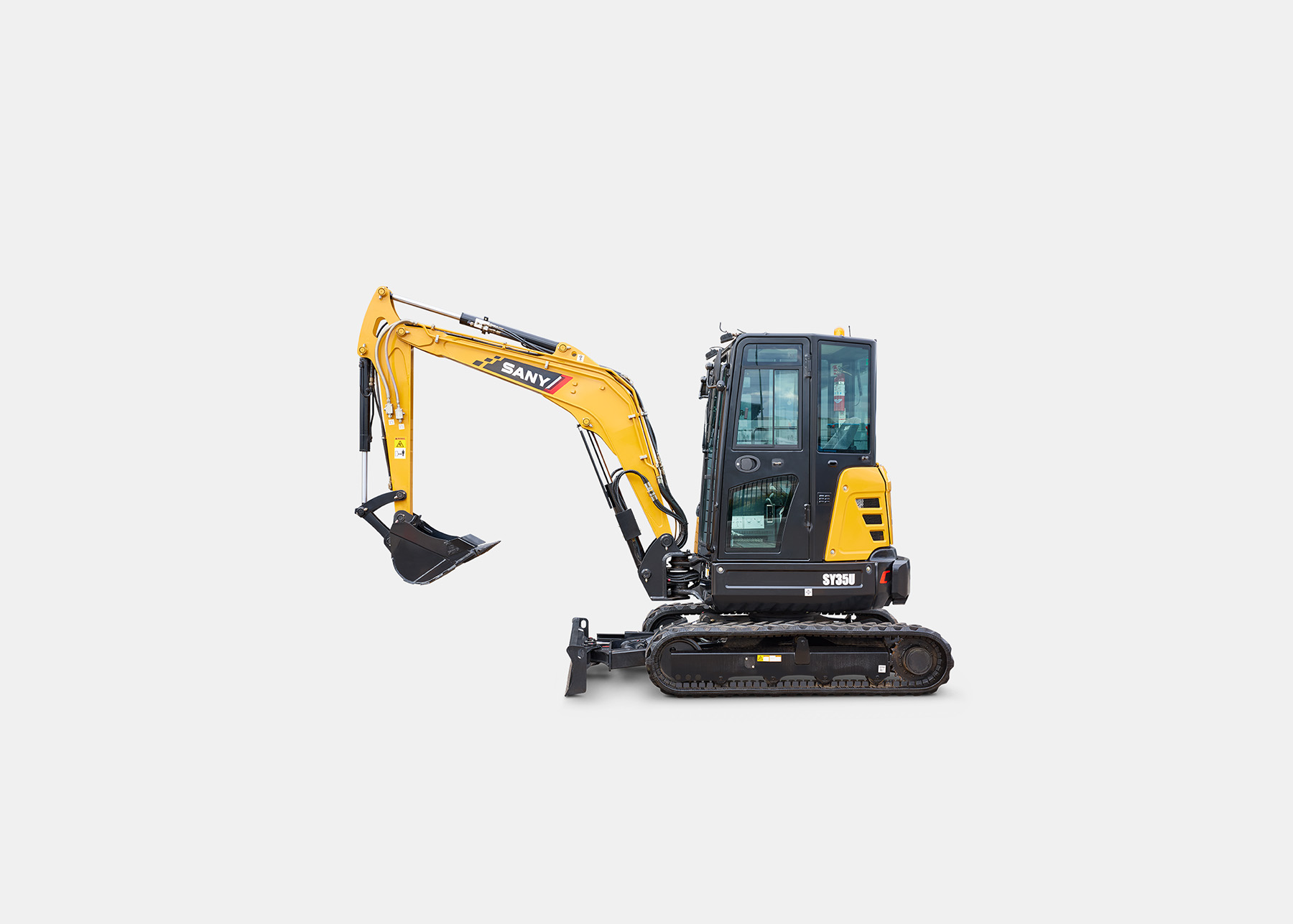

SY35U CAB

3.8 Tonne enclosed cab configuration

Front Side Back

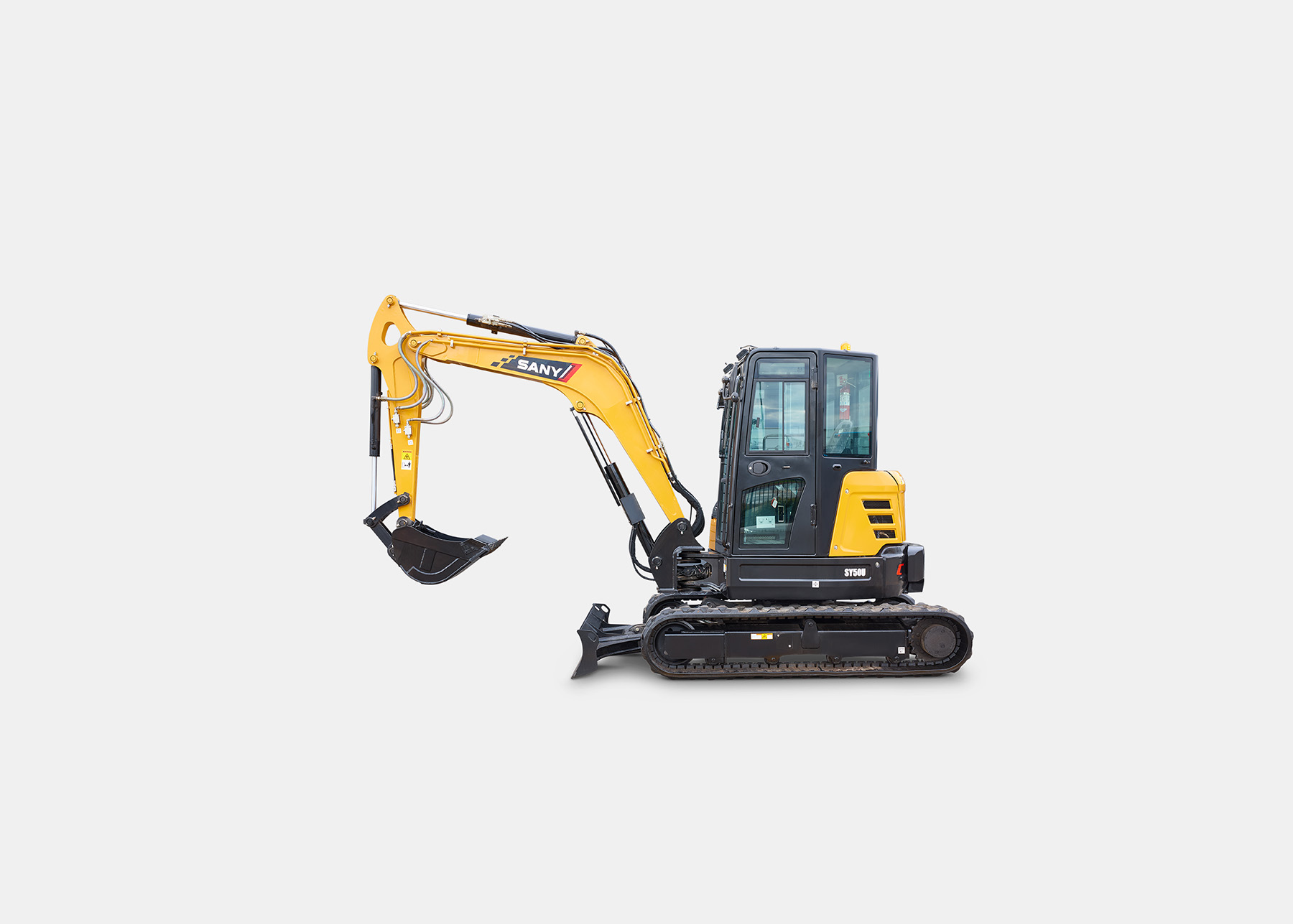

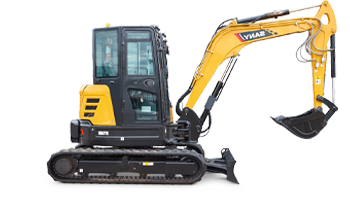

SY50U CAB

5.3 Tonne premium cab configuration

Front Side Back

Proven Quality. Dependable Aftermarket Support.

When you choose a SANY excavator, you are investing in global engineering excellence matched with robust local service and parts backing.

Reliable Aftermarket Support

Every machine in the lineup is built with world-class components to endure rigorous site conditions, offering earthmoving contractors and plant operators a high-return, low-maintenance equipment solution backed by complete owner peace of mind.

Low Operating Costs

Engineered to extract maximum hydraulic pressure while reducing idle consumption, SANY's power-matching engine technology cuts daily fuel burn—keeping project margins protected and operational expenditure low.

Operator Comfort & Workstation Design

Designed to reduce operator fatigue over long shifts, SANY cabs and canopies feature ergonomic joysticks, clear instrumentation displays, intuitive controls, and excellent line-of-sight visibility across the working perimeter.

Discover the SANY mini excavator range

Download the Brochure

Compare Models

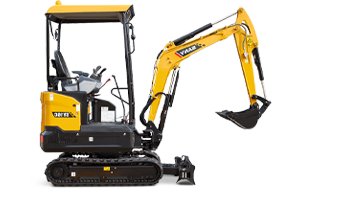

SANY SY16C Canopy

SANY SY16C

Canopy

  • Engine Yanmar 3TNV80F Stage V diesel
  • Maximum power 14.6 kW at 2,400 rpm
  • Operating weight 1,865 kg
  • Bucket capacity 0.04 m3
  • Max dig depth 2,360 mm
  • Max dig reach 4,000 mm
  • Bucket digging force 15.2 kN (ISO)
  • Undercarriage Width adjustable 980 to 1,350 mm rubber tracks

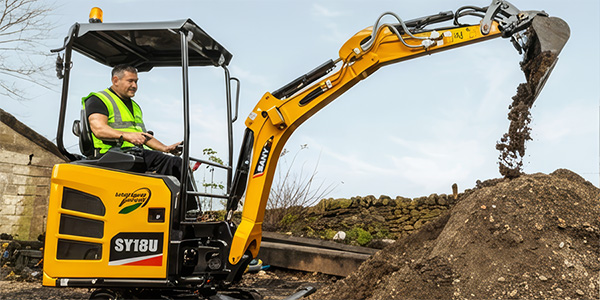

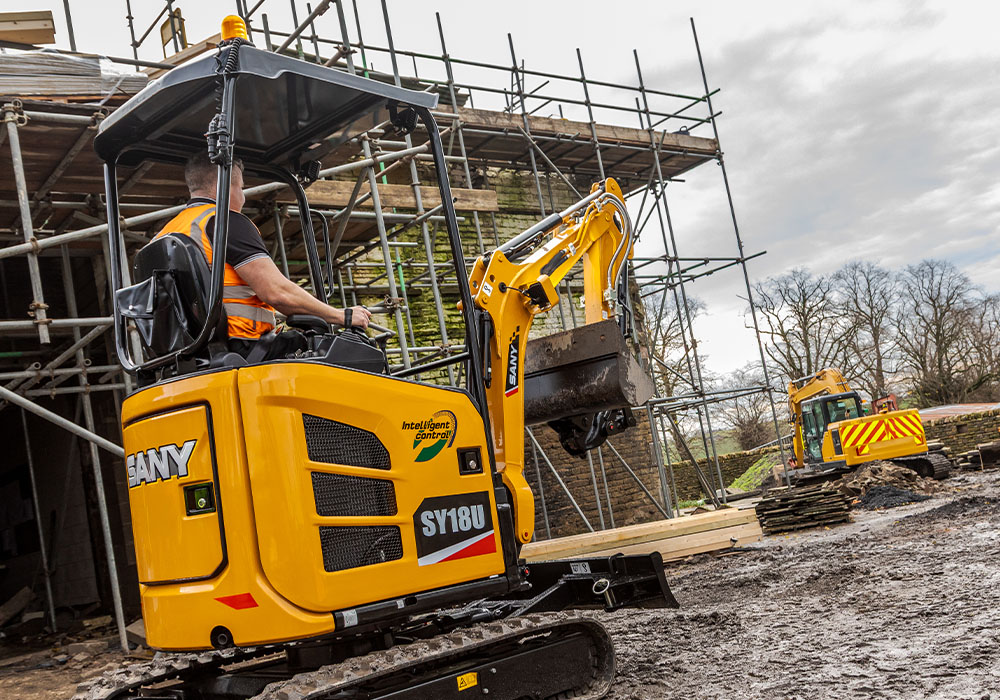

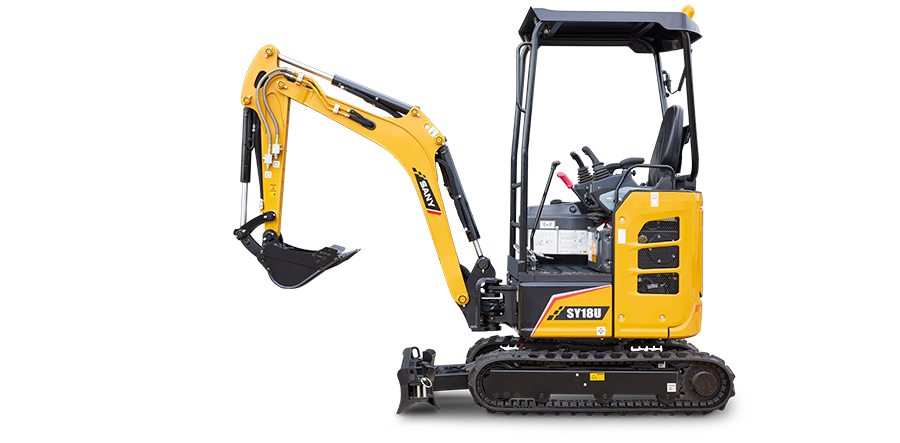

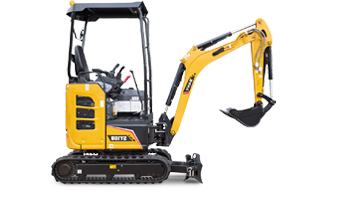

SANY SY18U Canopy

SANY SY18U

Canopy

  • Engine Yanmar 3TNV80F Stage V diesel
  • Maximum power 14.6 kW at 2,400 rpm
  • Operating weight 1,925 kg
  • Bucket capacity 0.04 m3
  • Max dig depth 2,385 mm
  • Max dig reach 4,010 mm
  • Bucket digging force 16.6 kN (ISO)
  • Tail swing Zero tail swing, radius 675 mm
  • Undercarriage Width adjustable 980 to 1,350 mm rubber tracks
SANY SY20C Cab

SANY SY20C

Cab

  • Engine Yanmar 3TNV80F Stage V diesel
  • Maximum power 14.6 kW at 2,400 rpm
  • Operating weight 1,975 kg
  • Bucket capacity 0.04 m3
  • Max dig depth 2,585 mm (1,160 mm arm)
  • Max dig reach 4,080 mm (1,160 mm arm)
  • Bucket digging force 16.6 kN (ISO)
  • Cab Air conditioned cab with high back seat
  • Undercarriage Expanding 1,040 to 1,350 mm rubber tracks

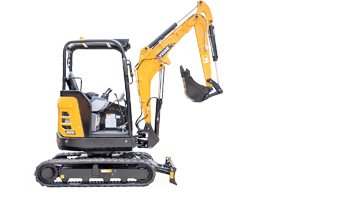

SANY SY26U Canopy

SANY SY26U

Canopy

  • Engine Yanmar 3TNV80F diesel
  • Maximum power 15.2 kW
  • Transport weight 2,812 kg
  • Max dig depth 2,820 mm
SANY SY35U Canopy

SANY SY35U

Canopy

  • Engine Yanmar 3TNV88F Stage V diesel
  • Maximum power 18.2 kW at 2,200 rpm
  • Operating weight Canopy weight on request
  • Bucket capacity 0.12 m3
  • Max dig depth 3,115 mm (1,400 mm arm)
  • Max dig reach 5,480 mm (1,400 mm arm)
  • Bucket digging force 30.4 kN (ISO)
  • Tail swing Zero tail swing, radius 860 mm

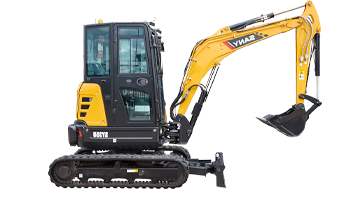

SANY SY35U Cab

SANY SY35U

Cab

  • Engine Yanmar 3TNV88F Stage V diesel
  • Maximum power 18.2 kW at 2,200 rpm
  • Operating weight 3,680 kg
  • Bucket capacity 0.12 m3
  • Max dig depth 3,115 mm (1,400 mm arm)
  • Max dig reach 5,480 mm (1,400 mm arm)
  • Bucket digging force 30.4 kN (ISO)
  • Cab Cab with heater and manual air conditioning
  • Blade Angled dozer blade with floating function
SANY SY50U Cab

SANY SY50U

Cab

  • Engine Yanmar 4TNV88-CT diesel
  • Maximum power 35.5 kW
  • Transport weight 5,408 kg
  • Max dig depth 3,460 mm
Specification SANY SY16C Canopy SANY SY18U Canopy SANY SY20C Cab SANY SY26U Canopy SANY SY35U Canopy SANY SY35U Cab SANY SY50U Cab
Engine Yanmar 3TNV80F Stage V diesel Yanmar 3TNV80F Stage V diesel Yanmar 3TNV80F Stage V diesel Yanmar 3TNV80F diesel Yanmar 3TNV88F Stage V diesel Yanmar 3TNV88F Stage V diesel Yanmar 4TNV88-CT diesel
Maximum power 14.6 kW at 2,400 rpm 14.6 kW at 2,400 rpm 14.6 kW at 2,400 rpm 15.2 kW 18.2 kW at 2,200 rpm 18.2 kW at 2,200 rpm 35.5 kW
Operating weight 1,865 kg 1,925 kg 1,975 kg - Canopy weight on request 3,680 kg -
Bucket capacity 0.04 m3 0.04 m3 0.04 m3 - 0.12 m3 0.12 m3 -
Max dig depth 2,360 mm 2,385 mm 2,585 mm (1,160 mm arm) 2,820 mm 3,115 mm (1,400 mm arm) 3,115 mm (1,400 mm arm) 3,460 mm
Max dig reach 4,000 mm 4,010 mm 4,080 mm (1,160 mm arm) - 5,480 mm (1,400 mm arm) 5,480 mm (1,400 mm arm) -
Bucket digging force 15.2 kN (ISO) 16.6 kN (ISO) 16.6 kN (ISO) - 30.4 kN (ISO) 30.4 kN (ISO) -
Undercarriage Width adjustable 980 to 1,350 mm rubber tracks Width adjustable 980 to 1,350 mm rubber tracks Expanding 1,040 to 1,350 mm rubber tracks - - - -
Tail swing - Zero tail swing, radius 675 mm - - Zero tail swing, radius 860 mm - -
Cab - - Air conditioned cab with high back seat - - Cab with heater and manual air conditioning -
Transport weight - - - 2,812 kg - - 5,408 kg
Blade - - - - - Angled dozer blade with floating function -
Specifications - Figures shown are the manufacturer's theoretical maximum values for the model shown and may vary with attachment, arm option and regional specification. Where two arm lengths are offered, digging depth and reach differ accordingly.
Weight - Operating weight includes operator, attachments and quick hitch. Operating weight (per SANY brochure) includes a 75 kg operator and a full fuel tank.
Emissions - Engine and emissions specification vary by model; refer to the relevant SANY brochure for compliance details.
Warranty & Service - Backed by SANY's 5-year/4,000-hour machine warranty and 500-hour service intervals; SANY genuine parts carry a 12-month warranty. Terms, conditions and exclusions apply — contact CEA for the current warranty statement.
NOTICE : Information is provided as a guide only, is non-binding and subject to change without notice. Not all models or options are available in all markets. Imagery may show attachments or options not supplied as standard.
